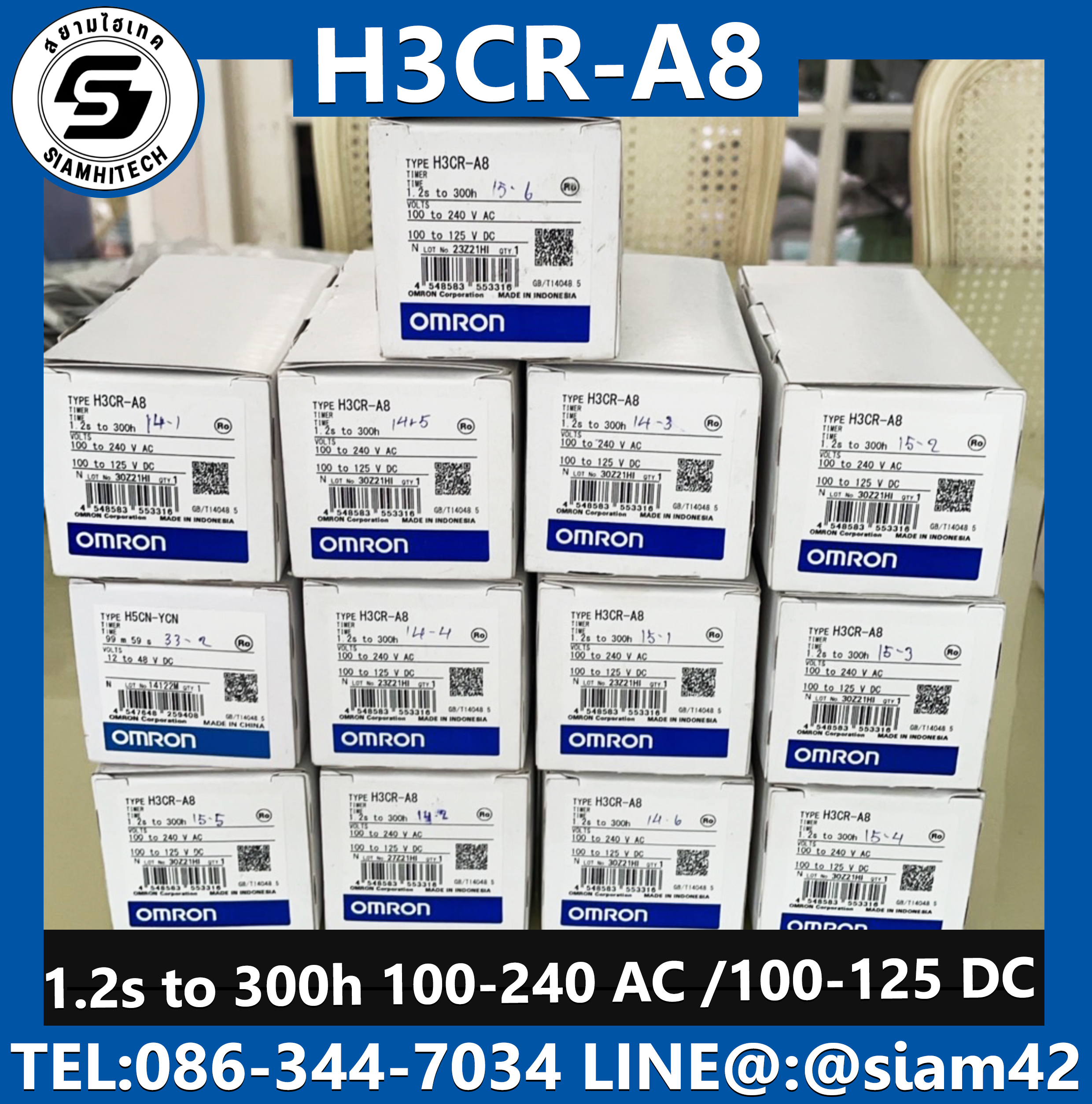

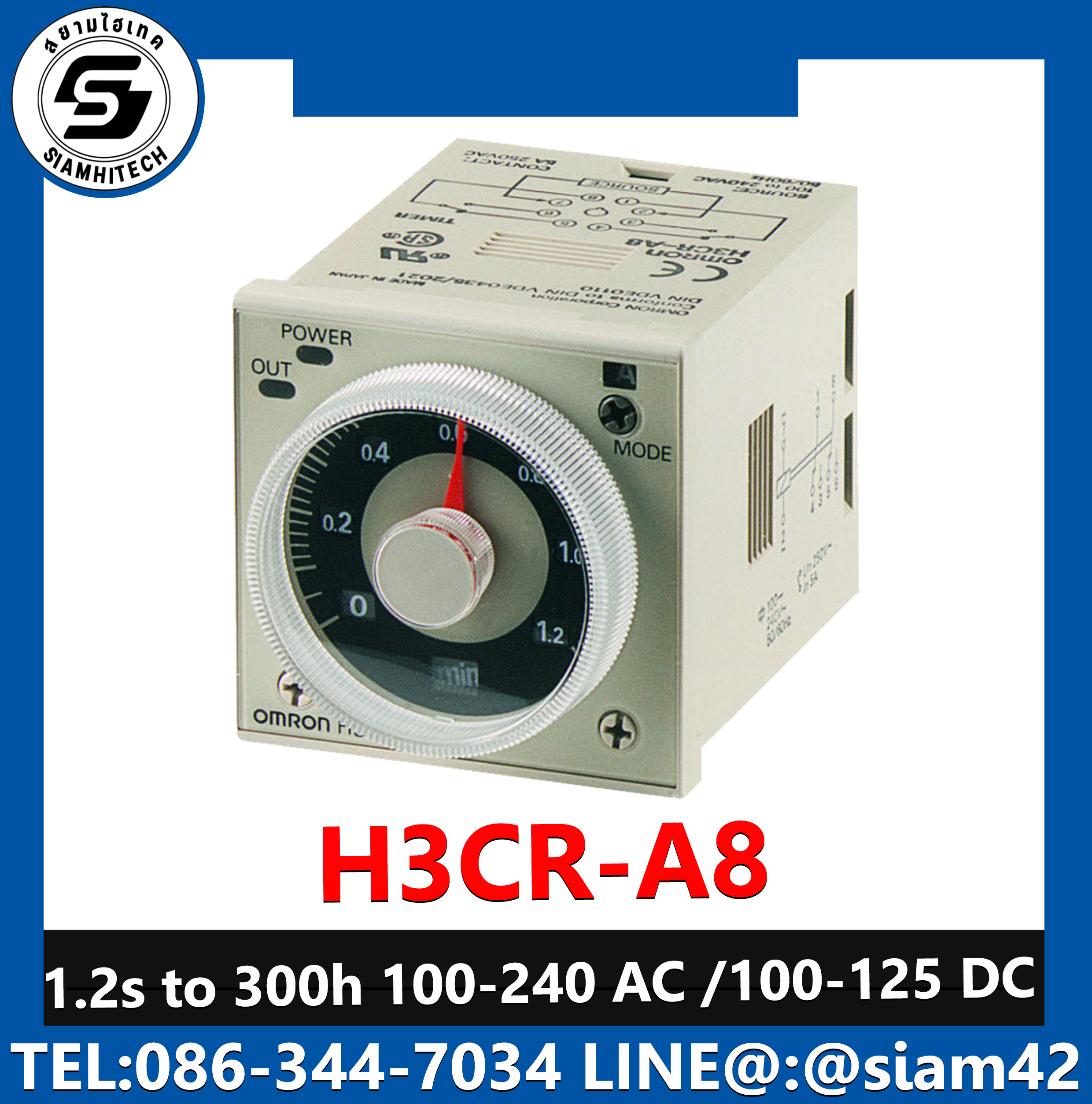

Name: Timer Omron H3CR-A8 (New) 1.2s to 300h / 100-240 VAC /100-125VDC / Made in Indonesia
Brand: Omron
SKU: SKU-02158
Price: 950 THB
Availability: InStock

100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Interval/One shot output, Time range: 0.05 to 1.2 s (18 range), 8-pin

รหัสสินค้า	SKU-02158
หมวดหมู่	Counter / Timer
ราคา	950.00 บาท
สถานะสินค้า	พร้อมส่ง
ลงสินค้า	28 พ.ค. 2562
อัพเดทล่าสุด	7 มิ.ย. 2565
คงเหลือ	13 ชิ้น
จำนวน	ชิ้น

Rated power supply voltage	100 to 240 VAC 50/60 Hz 100 to 125 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier)
Control output (Type)	Time-limit: DPDT
Operating resetting	Time-limit operation/Self-reset
Connecting method	8-pin round socket

Rated power supply voltage	100 to 240 VAC 50/60 Hz 100 to 125 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier)
Allowable voltage variable range	85% to 110% of rated voltage
Power consumption	Relay ON: Approx. 2 VA (at 240 VAC 60 Hz)/Relay OFF: Approx. 1.3 VA (at 240 VAC 60 Hz) Relay ON: Approx. 1.6 W (at 240 VAC 60 Hz)/Relay OFF: Approx. 1.1 W (at 240 VAC 60 Hz)
Reset voltage	10% max. of rated supply voltage
Number of time ranges	18
Operation mode	ON delay, Flicker OFF start, Flicker ON start, Interval, One shot output
Control output (Type)	Time-limit: DPDT
Control output (Contact output)	Resistive load: 250 VAC 5 A (cosφ=1)/5 A at 30 VDC/ Inductive load (Reference value): 2 A at 250 VAC (cosφ=0.4)/3 A at 30 VDC (L/R=7 ms) Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value)
Operating resetting	Time-limit operation/Self-reset
Ambient temperature range	Operating: -10 to 55 ℃ (with no icing) Storage: -25 to 65 ℃ (with no icing)
Ambient humidity range	Operating: 35 to 85%
Accuracy of operating time	±0.2% FS max. ±0.2% ±10 ms in a range of 1.2 s and 3 s
Setting error	±5% FS ±50 ms max.
Reset time	0.1 s max.
Influence of voltage	±0.2% FS max. ±0.2% ±10 ms in a range of 1.2 s and 3 s
Influence of temperature	±1% FS max. (±1% ±10 ms in a range of 1.2 s and 3 s)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	Between current carrying metal parts and non-current carrying metal parts: 2,000 VAC 50/60 Hz 1 min Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz 1 min Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min
Impulse withstand voltage	Between power terminals: 5 kV Between current carrying terminals and exposed non-current carrying metal parts: 5 kV
Noise immunity	±1.5 kV (between power terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise)
Static immunity	Mulfunction: 8 kV, Destruction: 15 kV
Vibration resistance	Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min
Shock resistance	Destruction: 1,000 m/s², 3 times each in 6 directions Malfunction: 100 m/s², 3 times each in 6 directions
Life expectancy (relay output)	Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1800 operations/h) Mechanical: 20 million operations min. (under no load at 1,800 operations/h)
Degree of protection	Panel surface: IP40 Terminals: IP00
Connecting method	8-pin round socket
Case color	Munsell 5Y7/1
Accessories	Instruction manual, Compliance information sheet
Weight	Approx. 90 g

หน้าที่เข้าชม	949,738 ครั้ง
ผู้ชมทั้งหมด	629,407 ครั้ง
เปิดร้าน	17 ม.ค. 2559
ร้านค้าอัพเดท	5 พ.ย. 2568

Timer Omron H3CR-A8 (New) 1.2s to 300h / 100-240 VAC /100-125VDC / Made in Indonesia

รายละเอียดสินค้า

100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Interval/One shot output, Time range: 0.05 to 1.2 s (18 range), 8-pin
